The Equipment CPW-plus models are multi-purpose industrial scales created for easy use. Featuring different options for units of measurement, portability, and an easy to read backlit indicator, the CPW-plus scales are durable and dependable for your every weighing need.
Features | Applications |
4 Weighing units (kg, g, lb, oz) | Weighing |
Hold function | Animal / dynamic weighing |
Full range tare | |
Zero Tracking | |
External calibration | |
Simple 4 button operation | |
Large backlit LCD display | |
Large stainless steel platform | |
Handlebar frame and wheeled base for mobility | |
Splashproof to protect from accidental spills | |
Non-slip adjustable levelling feet | |
Four load cell construction | |
Colour coded keys | |
Modern low profile design | |
RS-232 bi-directional interface | |
Rechargeable battery | |
Auto sleep / power down function to save battery life | |
Low battery indication | |
AC Adapter |
Technical Specifications
Model | CPWplus 35W | CPWplus 75W | CPWplus 150W | CPWplus 200W |
Maximum capacity | 75lb/35kg | 165lb/75kg | 330lb/150kg | 440lb/200kg |
Readability | 0.02lb/10g | 0.05lb/20g | 0.1lb/50g | |
Repeatability (S.D.) | 10g | 20g | 50g | |
Linearity (±) | 20g | 40g | 100g | |
Pan size | 19.7×19.7″ / 500×500mm |
General Specifications
Tare range | Full |
Tare functions | Full |
Units of measurement | Pound (lb), Kilogram (kg), Ounce (Oz), Pound-Ounce (lb-oz) |
Typical stabilisation time | 2 – 3 Sec |
Calibration | Automatic external |
Display | 22mm Backlit LCD digits |
Battery | Internal Rechargeable Battery |
Power supply | 12 VDC, 500 mA Power Supply |
Overall dimensions (wxdxh) | 19.7×19.7×1.6″ / 500×500×40mm |
Dimensions notes | Indicador: 220 x 95 x 43mm (w x d x h) |
Net weight | 27.4lb |
Accessories
· RS-232 to PC Cable
· RS-232 to USB Interface Cable (must be ordered with 3074010266 RS232 cable)
· DU – Data Collection Program

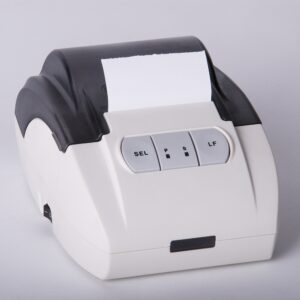

· ATP Thermal Printer
· Thermal Paper For ATP (10 pack)
