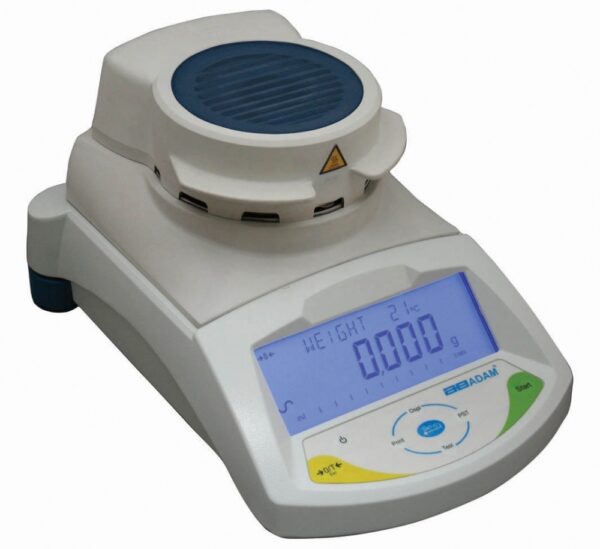

The PMB’s fast response time and easy-to-use functionality make it the ideal moisture analyser for a range of different applications. The automatic test setting function lets you quickly run multiple tests without additional user input and the built-in memories lets you store that data for future reference. The PMB offers smart features that have been developed to give you the ultimate performance for moisture analysis.
| Features | Applications |
| Built-in memories for storing products and settings | Moisture determination |
| 3 settings for heating sample fast ramp up, step and standard | Weighing |
| Automatic test start setting for when the lid is closed | |
| Date and time | |
| Full range tare | |
| Zero Tracking | |
| Quick and easy to configure through the keypad | |
| Multilingual display | |
| Large backlit display with dual text prompts | |
| Capacity tracker | |
| Non-slip adjustable levelling feet | |
| Colour coded, sealed keypad | |
| Large stainless steel pan | |
| Lock down mounting slot for Kensington™ type lock and cable | |
| Overload protection | |
| Splashproof to protect from accidental spills | |
| Spirit Level | |
| Single Halogen Lamp 400W | |
| RS-232 and USB interface | |
| GLP print outs | |
| Calibration facilities for temperature and weight | |
| Power Cord | |
| Pan lifter to easily remove samples |
Technical Specifications
| Model | PMB 53 | PMB 202 |
| Maximum capacity | 50g | 200g |
| Readability | 0.001g /0.01% | 0.01g /0.05% |
| Repeatability (S.D.) | – | 0.02g |
| Linearity (±) | 0.002g | 0.02g |
| Pan size | 3.9″ Ø / 100mm Ø | |
General Specifications
| Typical stabilisation time | 3 Sec |
| Units of measurement | Gram (g), % Moisture / % Solid |
| Interface | USB host for memory card and USB I/O interface and RS-232 |
| Calibration | Automatic External |
| Display | Backlit LCD display 24mm with dual digits and capacity tracker |
| Housing | Aluminium |
| Overall dimensions (wxdxh) | 9.8×14.2×7.3″ / 250×360×185mm |
| Height above pan | 1.2″ / 30mm |
| Drying temperature range | 50-160°C increments of 1°C |
| Time setting | 1 min – 99 mins |
| Moisture range | 0-100% |
| Heater type | Single 400W halogen heater |
| Sampling interval time | 1 – 59 seconds |
| Typical time of measurement | 2 – 20 minutes |
| Power of heaters | 400w |
Accessories
· USB Cable
· Security Lock and Cable
· RS-232 to PC Cable
· AdamDU – Data Collection Program
· In-use Cover
· Temperature Calibration Kit
· ASTM 3 – 50g calibration weight
· ATP Thermal Printer
· Thermal Paper For Adam ATP (10 pack)
