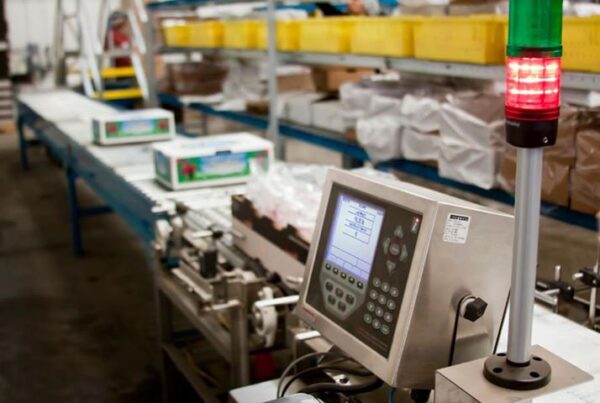

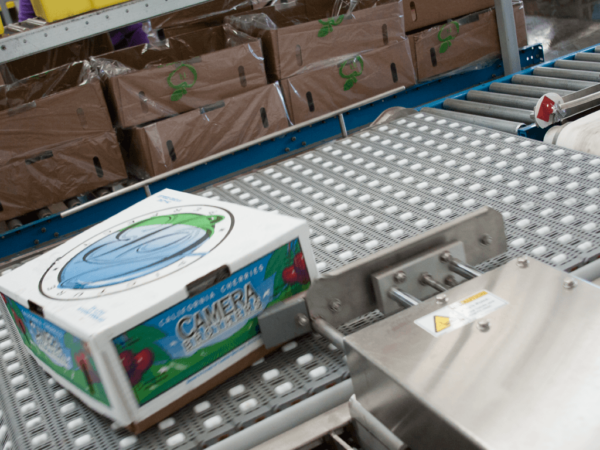

MotoWeigh case weighers, checkweighers, conveyors, sorting systems and automatic labelers provide a family of products for both wet and dry applications in food, logistics, packaging, manufacturing, and warehousing. Systems are available in aluminum or stainless steel, severe wash-down or dry, NTEP Certified Legal-for-Trade or non-commercial applications. Each system is manufactured and configured to match a specific application, not adapted to fit from a collection of standard products. All systems use common components that are available from a variety of local sources. Open architecture ensures serviceability and expandability to meet future demands.
Single load cell design:
- Stainless steel construction for washdown and harsh environment
- Rigid frame with redundant overload stops
- Custom size from 6″ to 36″ wide and 12″ to 60″ in length
- Crowned Cover sheds water
- Cross braced 1 1/2″ stainless steel tube frame for superior support and rigidity
Solid UHMW (ultra high molecular weight) Weigh Bed:
- Extremely durable
- Minimizes vibration
- Maximum belt support
- Fewer moving parts enhance scale accuracy and product life
Delrin Wear Blocks:
- Never requires lubrication
- Never changes shape due to friction
- Mitigates routine belt tension adjustments
Conveyor Clean-Out System:
- Spray Nozzles located at the end of each conveyor aimed at drive pulleys
- Conveyor Sections are equipped with a “quick connect” coupling for water supply
Speed & Accuracy:
- From 0.005lbs at 10lbs to 0.1lbs at 200lbs
- Non-NTEP units available in finer increments
- Packages up to 100lbs at belts speeds of up to 380 feet per minute
- Packages up to 200lbs at belt speeds of up to 200 feet per minute
